Orafol

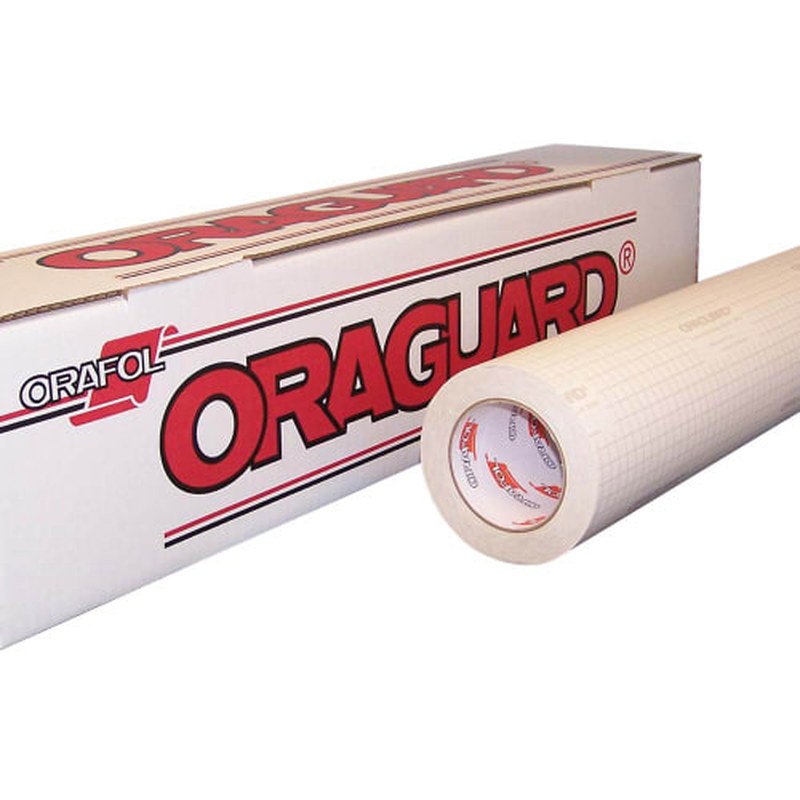

ORAGUARD 215 PVC Laminating Film
ORAGUARD 215 2.75 mil clear calendered PVC laminate for flat signs, up to 5 yr with 3 yr UV extension. Protects ORAJET 3651 prints. 54" x 50 yd.
$698.35
SKU O215G-54
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Is it right for your job?
Best for
- Medium- to long-term flat signage
- ORAJET 3651 / 3651RA / 3165RA prints
Not for
- Curves and vehicle wraps
Overview
ORAGUARD 215 is a 2.75 mil clear calendered PVC overlaminate for medium- to long-term indoor and outdoor jobs. It is rated up to 5 years with a 3-year UV protection extension factor and is designed for flat application only.
ORAFOL lists it as a recommended laminate for ORAJET 3651, 3651RA and 3165RA. It is the step up from ORAGUARD 210 when signs need to last longer outdoors.
ORAGUARD 215 is offered in gloss, semi-gloss and matte; this SKU is gloss. For curved or vehicle surfaces use cast ORAGUARD 290 or 293.
Key features
- 2.75 mil clear calendered PVC overlaminate
- Up to 5 yr durability
- UV extension factor of 3 years
- Flat application only
- Gloss (also offered in semi-gloss and matte)
Specifications
| Film | Calendered PVC, clear |
|---|---|
| Thickness | 2.75 mil |
| Adhesive | Clear, solvent-based, pressure-sensitive, permanent |
| Liner | 55# silicone-coated paper |
| Finish | Gloss |
| Durability | Up to 5 yr |
| Application surfaces | Flat |
| Compatible films | ORAJET 3651 / 3651RA, ORAJET 3165RA |
| Width | 54" |
| Roll length | 50 yd |
Printer compatibility
Laminates are not printed. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- ORAGUARD 210 PVC Laminating Film — Economy 4 yr calendered laminate
- ORAGUARD 290 Premium Cast PVC Laminating Film — Cast laminate for curves
FAQ
How long does ORAGUARD 215 last?
Up to 5 years with a 3-year UV extension factor.
Can it go on curves?
No, it is designed for flat application only.
210 or 215?
215 is thicker (2.75 mil) and longer-lasting (5 yr) than 210 (2.5 mil, 4 yr).
