Orafol

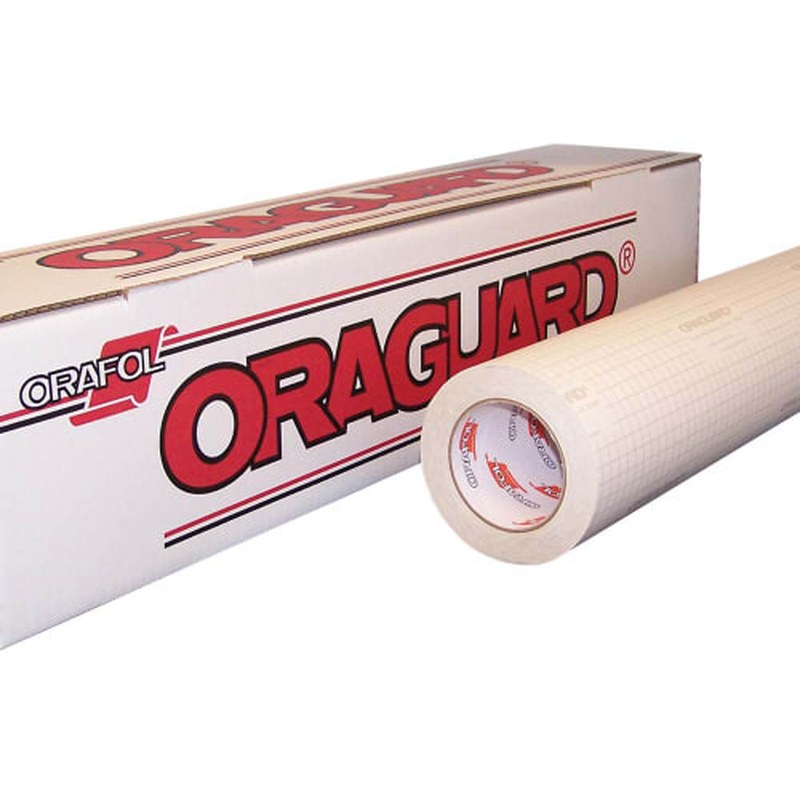

ORAGUARD 290 Premium Cast PVC Laminating Film
ORAGUARD 290 2 mil premium cast PVC laminate, stretches to 120%, up to 8 yr. For vehicle wraps and curves; pairs with ORAJET 3951RA. 54" x 50 yd.
$924.20
SKU O290G-54
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Is it right for your job?
Best for
- Vehicle and fleet wraps
- Compound curves and deep channels
- ORAJET 3951RA prints
Not for
- Budget flat signs (use 210/215)
Overview
ORAGUARD 290 is a 2 mil premium cast PVC overlaminate for flat surfaces, simple and compound curves, and deep channels. It can stretch up to 120% with exceptional conformability and lifting resistance, is rated up to 8 years, and adds a UV protection extension factor of four years.
It is the laminate for long-term indoor and outdoor digital prints on vehicles and complex shapes, and ORAFOL pairs it with ORAJET 3951RA cast wrap film.
Choose 290 for general wrap and fleet protection; choose ultra-thin ORAGUARD 293 when maximum flexibility is needed.
Key features
- 2.0 mil gloss cast PVC overlaminate
- Stretches up to 120%
- Exceptional conformability and lifting resistance
- Long-term indoor and outdoor protection
- UV extension factor of 4 years
- Up to 8 yr durability
Specifications
| Film | Cast PVC, clear |
|---|---|
| Thickness | 2 mil |
| Adhesive | Clear, solvent-based, permanent |
| Liner | 55# silicone-coated paper |
| Finish | Gloss |
| Durability | Up to 8 yr |
| Compatible films | ORAJET 3951RA |
| Applications | Vehicle wraps, Fleet graphics, Long-term outdoor graphics |
| Width | 54" |
| Roll length | 50 yd |
Printer compatibility
Laminates are not printed. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- ORAGUARD 293 Ultra Flexible Cast PVC Laminating Film — Ultra-thin 1 mil cast laminate
- ORAGUARD 215 PVC Laminating Film — Calendered laminate for flat signs
FAQ
How far does ORAGUARD 290 stretch?
Up to 120% of itself.
Which print film matches 290?
ORAFOL pairs ORAGUARD 290 with ORAJET 3951RA cast wrap film.
How long does it last?
Up to 8 years with a 4-year UV extension factor.
