Orafol

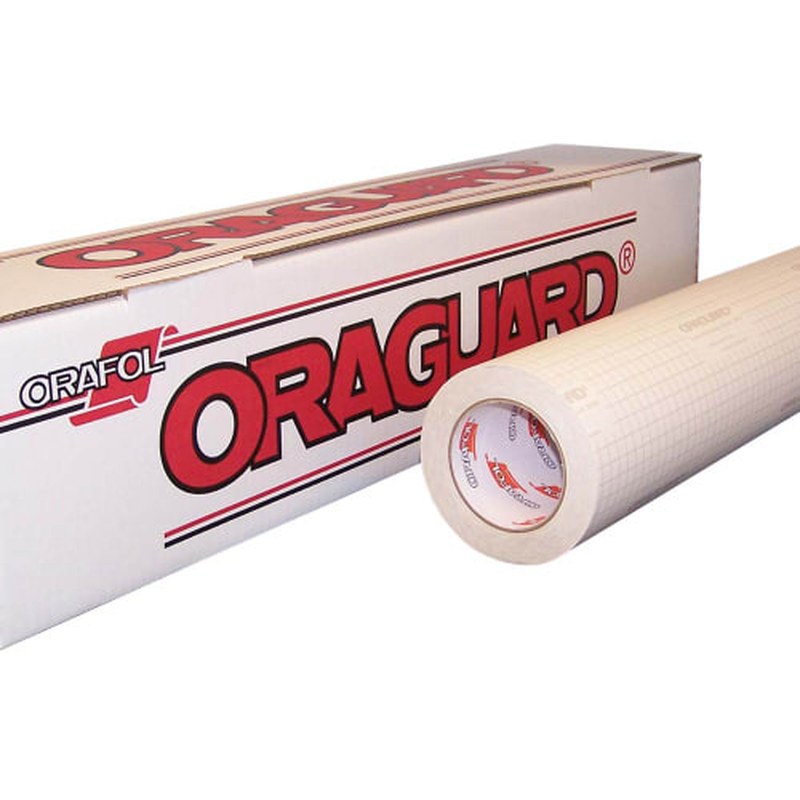

ORAGUARD 293 Ultra Flexible Cast PVC Laminating Film
ORAGUARD 293 1 mil ultra-flexible cast PVC laminate for vehicle wraps, up to 8 yr. Recommended with ORAJET 3551RA and 3951RA. 54" x 50 yd gloss.
$1,003.72
SKU O293G-54
In stock
Orders over $10,000 are paid by bank wire or ACH only.
Is it right for your job?
Best for
- Vehicle wraps with deep recesses
- ORAJET 3551RA vehicle graphics
- ORAJET 3951RA wraps
Not for
- Flat signs where calendered is cheaper
Overview
ORAGUARD 293 is an ultra-thin 1 mil gloss cast PVC overlaminate. Its extra flexibility suits flat, simple and compound curves and deep channels, with exceptional conformability and lifting resistance, up to 8 years durability and a 4-year UV extension factor.
ORAFOL recommends 293 for vehicle wrapping in combination with ORAJET 3551, 3551RA or ORALITE 5600/5650RA, and lists it as a pairing for ORAJET 3951RA.
Pick 293 when you need the most flexible laminate for tight recesses; pick 290 for a thicker, general-purpose cast laminate.
Key features
- 1.0 mil gloss cast PVC overlaminate
- Ultra-thin and extremely flexible
- Exceptional conformability and lifting resistance
- UV extension factor of 4 years
- Up to 8 yr durability
Specifications
| Film | Cast PVC, clear |
|---|---|
| Thickness | 1 mil |
| Adhesive | Clear, solvent-based, pressure-sensitive, permanent |
| Liner | 55# silicone-coated paper |
| Finish | Gloss |
| Durability | Up to 8 yr |
| Compatible films | ORAJET 3551RA, ORAJET 3951RA |
| Applications | Vehicle wraps, Deep channels and recesses |
| Width | 54" |
| Roll length | 50 yd |
Printer compatibility
Laminates are not printed. Laminate HP Latex 570 prints only after they have fully cured and cooled; latex prints come out dry, but follow the film maker's guidance before laminating.
Pairs well with
Compare with
- ORAGUARD 290 Premium Cast PVC Laminating Film — Thicker 2 mil cast laminate
FAQ
How thick is ORAGUARD 293?
1 mil.
What should I pair it with?
ORAFOL recommends it with ORAJET 3551/3551RA for vehicle wrapping and lists it for ORAJET 3951RA.
How long does it last?
Up to 8 years.
